Topaz Triple Concealed Shower Valve - TSVT003

Topaz Triple Concealed Shower Valve

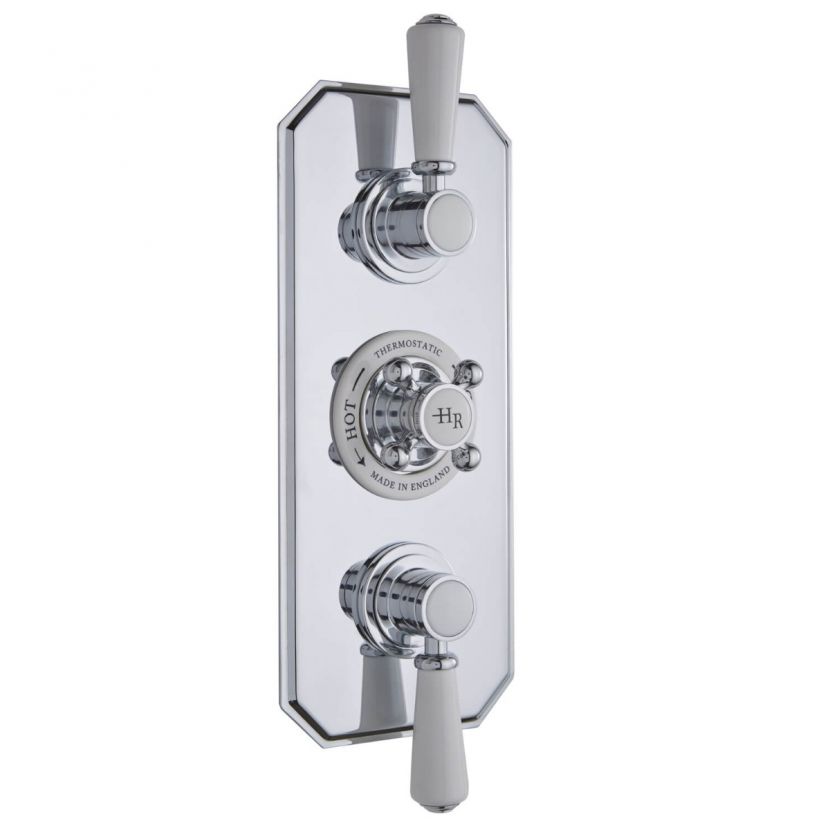

The Topaz Triple Concealed Thermostatic Shower Valve emphasizes form through function. Designed with three controls, this valve enables you to experience an exhilarating showering experience. The thermostatic element ensures the valve is safe and reliable and shuts off automatically in the event of the loss of cold water.  Available with a rectangular back plate, this set is created from solid brass and covered in chrome and white finish, which give it robust and sleek looks.

• Choice of Chrome-White or Chrome-Black finish available - [Optional]
• Concealed wall mounted installation
• Size: 120 x 135 x 320mm [Width x Depth x Height]
• Manufactured from brass
• 1/4 Turn ceramic disc cartridge
• Shower kit shown in image is not included
• Minimum water pressure recommended for smooth working is 0.1 bar [LP-Low Pressure]
• Minimum flow rate is 5.5 litres per minute at 0.1 bar water pressure
• Features and Specification:
• Accurate flow control and excellent flow rates - even at low pressure

• Thermostatic control to +/- 1 °C even if the water pressure fluctuates
• TMV2 VQ20 BC947/1211, TMV3 VQ20 BC1119/1212 and WRAS approved
• Anti-Scald - Full thermal protection to prevent scalding in the event of hot or cold water shut off
• In the event of hot or cold water failure the valve will shut down automatically
• The patented cartridge is highly resistant to calcium build up - even in hard water areas
• Suitable for use with all systems, gravity fed pumped unvented high pressure or fully modulated combi-boilers
• The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing - simply remove the cartridge turn 180° and replace
