Reign Triple Conc Thermo Valve RT Plt - REI3611

Reign Triple Conc Thermo Valve RT Plt

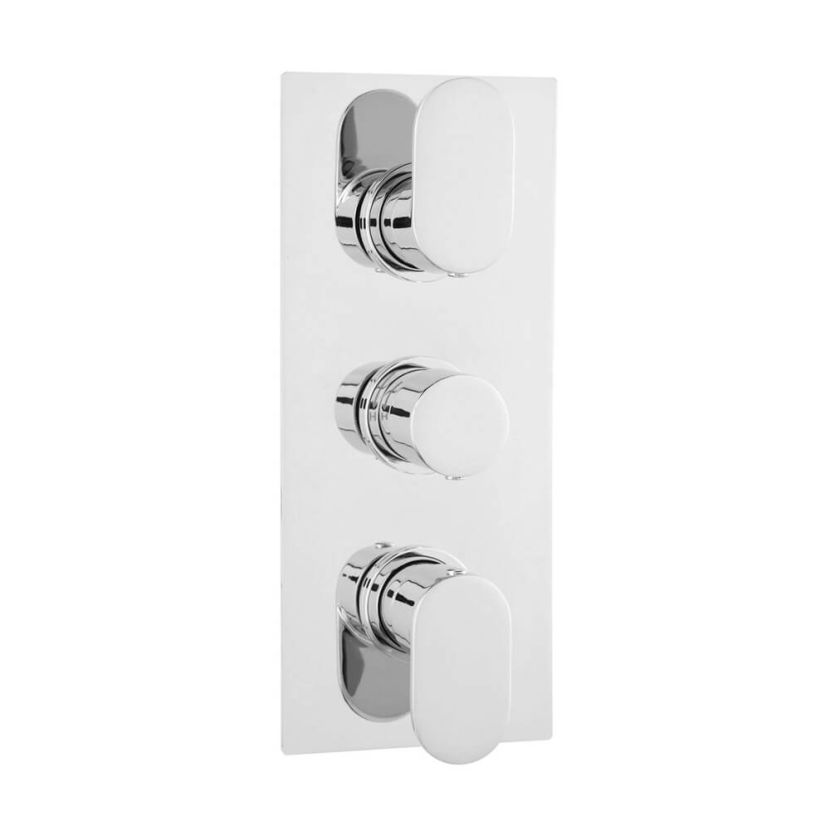

Begin an exciting day or end a successful day with a refreshingly warm shower by installing this Hudson Reed Reign Triple Thermostatic Concealed Shower Valve. Backed by a solid 20 years manufacturer guarantee against any manufacturing defects, this thermostatic concealed shower valve is made from high quality brass and finished in appealing chrome finish. This shower valve comes with Anti-Scald mechanism to protect your family against scalding due to suddenly hot or cold water shut off. If the hot and cold water supplies are the wrong way around, you need to remove the cartridge, turn 180° and replace.

• Available With or Without Diverter [Optional]
• Size of back plate: Width 120 x Depth 135 x Height 280mm
• Wall cavity required: 67mm
• Comes in chrome finish
• Minimalist sleek design
• Back plate shape: Rectangular
• Handle design: Lever and Round
• Number of handles: 3
• Manufactured from high quality Brass/ABS
• 1/4 Turn ceramic disc cartridge
• Can be install vertically or horizontally
• Mount type: Wall/ Recessed
• Pipe size : without diverter 15mm and With diverter 22mm
• Pipe centre: 125mm
• Manufactured using latest technique of thermostat
• Valves are thermostatically controlled using a Valquest patented cartridge
• Accurate flow control with excellent flow rate even at low pressure

• Suitable for medium water pressure system
• Required minimum 0.5 bar water pressure for smooth working
• Thermostatic control to +/- 2°C even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• Patented cartridge is highly resistant to calcium build up - even in hard water areas
• Cartridge is fully reversible meaning doesn't need re-plumbing if hot and cold supplies are the wrong way round it
• Simply remove the cartridge turn 180° and replace
• Features stain rust resistant
• Suitable for all plumbing system - gravity fed pumped unvented high pressure or fully modulated combi-boilers
• TMV2 approval no.: BC1875/0817
• TMV3 approval no.: BC1119/1212
• WRAS approval no.: 1703023
